IEC Connector

Representation specification

○Electrical characteristics Rated: voltage. current. 30V, 1A
Impedance: 75Ω
VSWR: ~860MHz 1.8max
Insulation resistance: DC500V 1000MΩ min.
Dielectric Strength: AC1000V 1minute
Contact resistance: 10mΩ max
○Mechanical characteristics Synthetic insertion & withdrawal force: 9.8N~58.8N
Life: 50 times
○Others RoHS correspondence
Reflow 260℃max. (for chassis)
Cable ass'y

Cable ass'y
"IEC" Plug
Crimp type
Cable type:1.5C-2V 1.7C-2V

Part No.

Material of Shell

Plating

DP022021_FL

Bs

Ni

Cable ass'y
Cable ass'y

Cable ass'y
"IEC" Plug
Solder type
Cable type:1.5C-2V 1.7C-2V

Part No.

Material of Shell

Plating

DP022041_FL

Bs

Ni

Cable ass'y
For chassis

For chassis

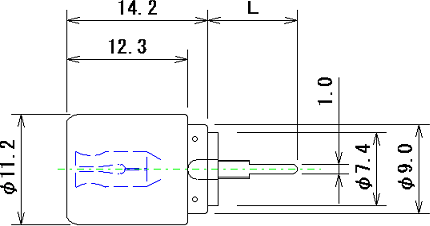

"IEC" Plug
Reflow 260℃ max.
Pin length variety.

Part No.

Material of Shell

Plating

IP090A###_FL

Steel

SnCu

For chassis
Cable ass'y

Cable ass'y

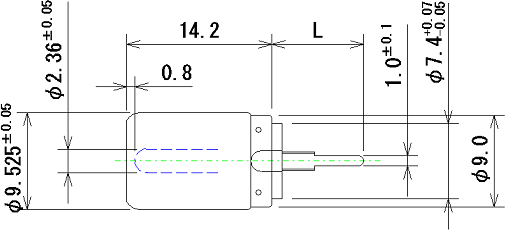

"IEC" Socket
Crimp type
Cable type:1.5C-2V 1.7C-2V

Part No.

Material of Shell

Plating

DS054041_FL

PB

Ni

Cable ass'y
For chassis

For chassis
"IEC" Socket
Inner spring system
Reflow 260℃ max.
Pin length variety.

Part No.

Material of Shell

Plating

IE140A###_FL

Steel

SnCu

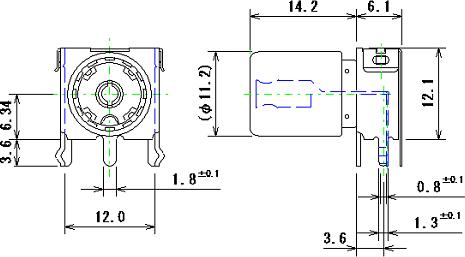

For chassis
For PCB

For PCB
"IEC" Socket
Inner spring system
Reflow 260℃ max.

Part No.

Material of Shell

Plating

IE140A071_FL

Steel

SnCu

For PCB
