SP Connector

Representation specification

○Electrical characteristics Impedance: 50Ω, 75Ω
Insulation resistance: DC250V 50MΩ min.
Dielectric Strength: AC250V 1minute
Contact resistance: 35mΩ max.
○Mechanical characteristics Synthetic insertion force: 50N max.
Synthetic withdrawal force: 5N~45N
○Others RoHS correspondence
Reflow 260℃max. (for chassis)
For PCB

For PCB

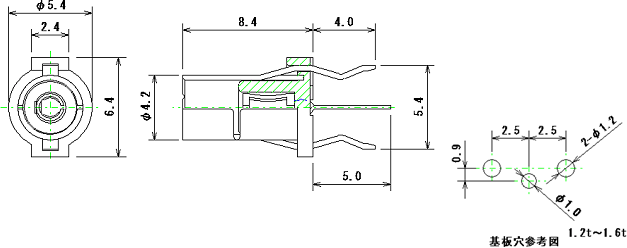

SP Mini Jack

Part No.

Material of Shell

Plating

SJ050010

Bs

Ag

SJ050020

Bs

Au

For PCB
For PCB

For PCB
SP Mini Jack

Part No.

Material of Shell

Plating

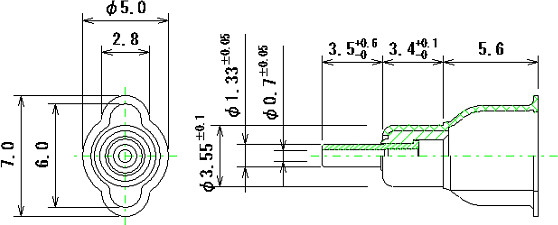

SJ060010

Bs

Ag

SJ060020

Bs

Au

For PCB
For PCB

For PCB

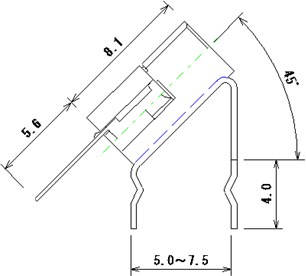

SP Mini Jack

Part No.

Material of Shell

Plating

SJ070010

Bs

Ag

SJ070020

Bs

Au

For PCB
Cable ass'y

For cable ass'y
SP Mini Plug
Crimp type
Cable type:1.5C-2V 1.7C-2V
       1.5D-2V

Part No.

Material of Shell

Plating

SP060020

Bs

Ag

SP060030

Bs

Au

Cable ass'y
Cable ass'y

Cable ass'y
SP Mini Plug
Crimp type
Cable type:1.5C-2V 1.7C-2V
       1.5D-2V

Part No.

Material of Shell

Plating

SP060021

Bs

Ag

SP060031

Bs

Au

Cable ass'y
