SMBConnector

Representation specification

○Electrical characteristics Impedance: 50Ω
VSWR: ~4GHz 1.3max
Insulation resistance: DC500V 100MΩ min.
Dielectric Strength: AC250V 1minute
Contact resistance: Center Contact : 6mΩ max.
Outer Contact : 6mΩ max.
○Mechanical characteristics Withdrawal force of Ceter contact: 0.5N min. by Dia 0.48mm gauge
Life: 500 times
○Others RoHS correspondence

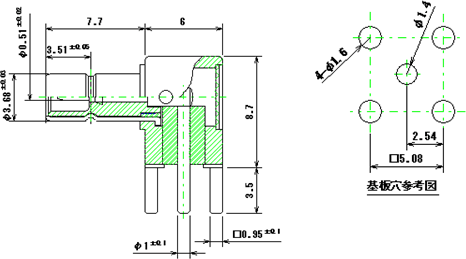

For PCB

For PCB
SMB Jack
Reflow 260℃ max.

Part No.

Material of Shell

Plating

SMB010010_FL

Bs

Ni

For PCB
Cable ass'y

Cable ass'y
SMB Plug
Solder type
Cable type:SF085

Part No.

Material of Shell

Plating

SMB020011_FL

Bs

SnCu

Cable ass'y
Cable ass'y

Cable ass'y
SMB Plug
Crimp type
Cable type:1.5D-2V

Part No.

Material of Shell

Plating

SMB020021_FL

Bs

Ni

Cable ass'y

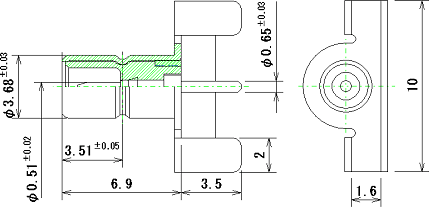

For PCB

For PCB
SMB Jack
Reflow 260℃ max

Part No.

Material of Shell

Plating

SMB040060_FL

Bs

Ni

For PCB
Cable ass'y

Cable ass'y
SMB Plug
Solder type
Cable type:SF085

Part No.

Material of Shell

Plating

SMB050010_FL

Bs

SnCu

Cable ass'y
Cable ass'y

Cable ass'y
SMB Plug
Crimp typ
Cable type:1.5D-2V

Part No.

Material of Shell

Plating

SMB100021_FL

Bs

Ni

Cable ass'y

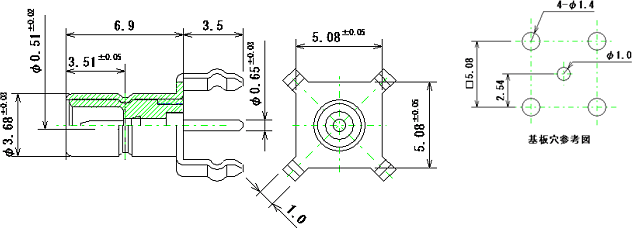

For PCB (1.6t)

For PCB (1.6t)
SMB Jack
Reflow 260℃ max.

Part No.

Material of Shell

Plating

SMB120010_FL

Bs

Ni

For PCB (1.6t)

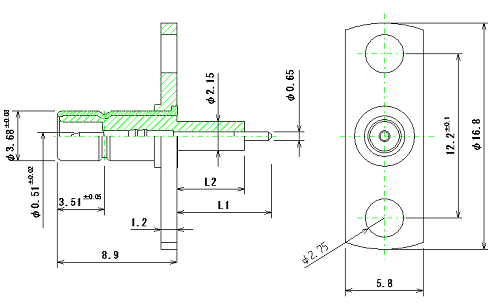

For chassis

For chassis
SMB Jack
Screw attachment

Part No.

Material of Shell

Plating

L1

L2

SMBM-021

Bs

Ni

7

5

SMBM-022

Bs

Ni

5

2

SMBM-023

Bs

Ni

6

3

For chassis
For PCB (1.6t)

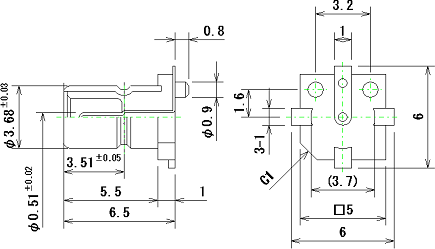

For PCB
SMB Jack
Surface Mount
Reflow 260℃ max.

Part No.

Material of Shell

Plating

SMB140010_FL

Bs

Ni

For PCB (1.6t)
SMB Jack

Cable ass'y
SMB Jack
Solder type
Cable type:SF085

Part No.

Material of Shell

Plating

SMB040021_FL

Bs

Ni
