PIN Jack Plug

Representation specification

○Electrical characteristics Impedance: 75Ω
Insulation resistance: DC500V 100MΩ min.
Dielectric Strength: AC1000V 1minute
Contact resistance: 20mΩ max.
○Mechanical characteristics Insertion force: Jack side 10N~40N by Dia 3.175 gauge
Plug side  50N max. by Dia 8.3 gauge
Withdrawal force: Jack side  8N~35N by Dia 3.175 gauge
Plug side 5N~45N by Dia 8.3 gauge
Life: Jack side 50 times
○Others RoHS correspondence
Reflow 260℃max. (for chassis)
For chassis

For chassis

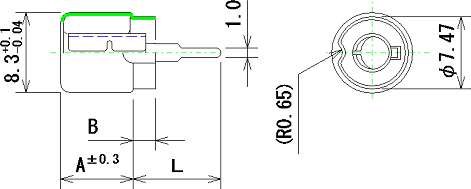

Pin Jack
Reflow 260℃ max.
Pin length variety.

Part No.

Material
of Shell

Plating

A

B

J060A###_FL

Steel

SnCu

7.5

2.3

J180A###_FL

Steel

SnCu

7.5

1

J240A###_FL

Steel

SnCu

10.3

1

J250A###_FL

Steel

SnCu

10.3

2.3

For chassis
For PCB

For PCB

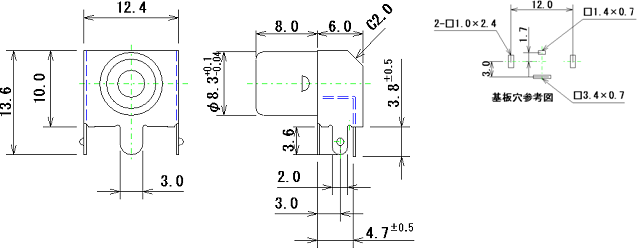

Pin Jack
Reflow 260℃ max.

Part No.

Material of Shell

Plating

J810010_FL

Steel

SnCu

J810020_FL

Steel

Ni

For PCB
For PCB

For PCB
Pin Jack
Reflow 260℃ max.

Part No.

Material of Shell

Plating

J850010_FL

Steel

SnCu

For PCB
Cable ass'y

For cable ass'y

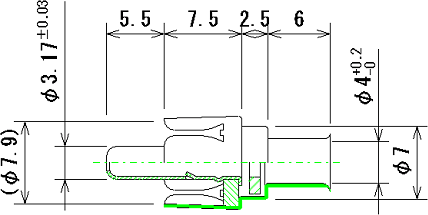

Pin Plug
Cable type:2.5C-2V 3C-2V

Part No.

Material of Shell

Plating

P030050_FL

Steel

SnCu

Cable ass'y
Cable ass'y

Cable ass'y
Pin Plug
Crimp type
Cable type:1.5C-2V 1.7C-2V

Part No.

Material of Shell

Plating

P050050_FL

Steel

SnCu

Cable ass'y
Cable ass'y

Cable ass'y
Pin Plug
Crimp type
Cable type:1.5C-2V 1.7C-2V

Part No.

Material of Shell

Plating

P200030_FL

Steel

SnCu

Cable ass'y
Cable ass'y

Cable ass'y
Pin Plug
Crimp type
Cable type:1.5C-2V 1.7C-2V

Part No.

Material of Shell

Plating

P760010_FL

Steel

SnCu

Cable ass'y
Cable ass'y

Cable ass'y
Pin Plug
Crimp type
Cable type:1.5C-2V 1.7C-2V

Part No.

Material of Shell

Plating

P820050_FL

Steel

SnCu

Cable ass'y
For chassis

For chassis

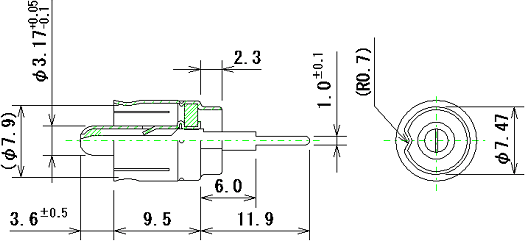

Pin Plug
Reflow 260℃ max.

Part No.

Material of Shell

Plating

P930031_FL

Steel

SnCu

For chassis

Mini Pin Jack & Mini Pin Plug

Representation specification

○Electrical characteristics Impedance: 75Ω
Insulation resistance: DC500V 100MΩ min.
Dielectric Strength: AC1000V 1minute
Contact resistance: 20mΩ max.
○Mechanical characteristics Insertion force: Jack side 8N~30N by Dia 2.35 gauge
Plug side 50N max. by Dia 6.3 gauge
Withdrawal force: Jack side 5N min. by Dia 2.35 gauge
Plug side 5N~45N by Dia 6.3 gauge
Life: Jack side 50 times
○Others RoHS correspondence
Reflow 260℃max. (for chassis)
For chassis

For chassis

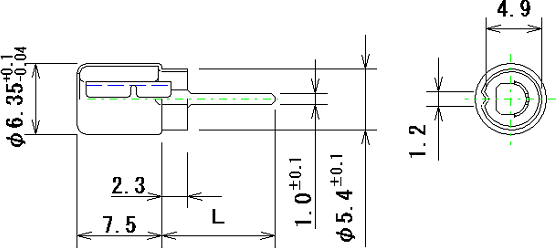

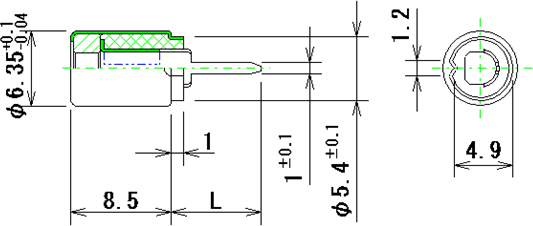

Mini Pin Jack
Reflow 260℃ max.
Pin length variety.

Part No.

Material of Shell

Plating

JS020A###_FL

Steel

SnCu

For chassis

For chassis
Mini Pin Jack
Reflow 260℃ max.
Pin length variety.

Part No.

Material of Shell

Plating

JS030A###_FL

Steel

SnCu

For chassis
For PCB

For PCB

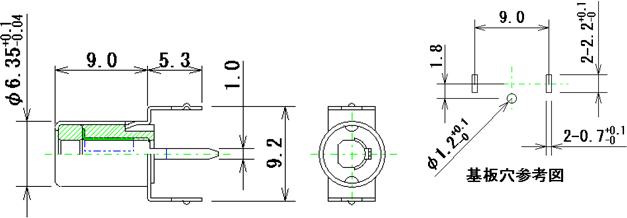

Mini Pin Jack
Reflow 260℃ max.

Part No.

Material of Shell

Plating

JS080010_FL

Steel

SnCu

For PCB

For PCB

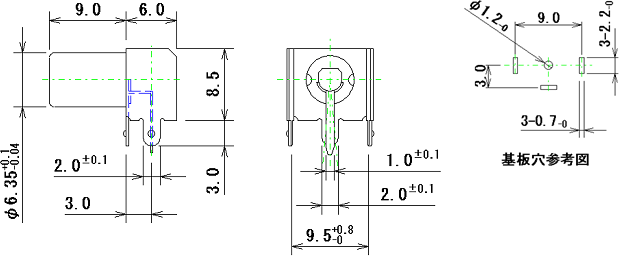

Mini Pin Jack
Reflow 260℃ max.

Part No.

Material of Shell

Plating

JS090A040_FL

Steel

SnCu

For PCB
Cable ass'y

Cable ass'y
Mini Pin Plug
Crimp type
Cable type:1.5C-2V 1.7C-2V

Part No.

Material of Shell

Plating

PS010030_FL

Steel

SnCu

Cable ass'y

Cable ass'y
Mini Pin Plug
Crimp type
Cable type:1.5C-2V 1.7C-2V

Part No.

Material of Shell

Plating

PS020030_FL

Steel

SnCu

Cable ass'y
